LP591212MDRVREP Integrated Circuits ICs , LDO Voltage Regulators 500MA 400uA

Name: LP591212MDRVREP Integrated Circuits ICs LDO Voltage Regulators 500MA 400uA
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LP591212MDRVREP

MOQ : 50pcs

Price : Negotiable

Supply Ability : 1000000pcs

Mounting Style : SMD/SMT

Package / Case : WSON-6

Output Voltage : 1.2 V

Output Current : 500 mA

Number of Outputs : 1 Output

Polarity : Positive

Quiescent Current : 400 uA

Input Voltage, Min : 1.6 V

Input Voltage, Max : 6.5 V

PSRR / Ripple Rejection - Typ : 75 dB

Contact Now

LP591212MDRVREP LDO Voltage Regulators Enhanced-Product, 500-MA, Low-Noise, Low-IQ

Texas Instruments LP5912/LP5912-Q1 Ultra-Low Noise LDO Regulator

Texas Instruments LP5912/LP5912-Q1 Ultra-Low Noise LDO Regulator is an LDO capable of supplying a 500mA output current. Designed to meet the requirements of RF and analog circuits, the LP5912/LP5912-Q1 device provides low noise, high PSRR, low quiescent current, and low line and load transient response. The LP5912/LP5912-Q1 offers class-leading noise performance without a noise bypass capacitor and with the ability for remote output capacitance placement. Each device is designed to work with a 1µF input and a 1µF output ceramic capacitor (no separate noise bypass capacitor required). These devices are available with fixed output voltages from 0.8V to 5.5V in 25mV steps. The LP5912-EP devices have gold bond wires, a temperature range of –55 to +105°C, and include an SnPb lead finish. The Texas Instruments LP5912-Q1 devices are AEC-Q100 qualified for automotive applications.

FEATURES

1.6V to 6.5V input voltage range
0.8V to 5.5V output voltage range
Output current up to 500mA
12µVRMS (typ.) low output voltage noise
75dB (typ.) PSRR at 1kHz
±2% output voltage tolerance (VOUT ≥ 3.3V)
30µA (typ.) low IQ (enabled, no load)
95mV (typ. at 500mA load) low dropout (VOUT ≥ 3.3V)

Stable with 1µF ceramic input and output capacitors
Thermal-overload and short-circuit protection
Reverse current protection
No noise bypass capacitor required
Output automatic discharge for a fast turnoff
Power-Good output with 140µs (typ.) delay
Internal soft-start to limit the in-rush current
–40°C to +125°C operating junction temperature range

APPLICATIONS

Camera modules
Sensors
Hi-Fi audio radio transceivers

PLL/synthesizer, clocking
Medium-current, noise-sensitive applications

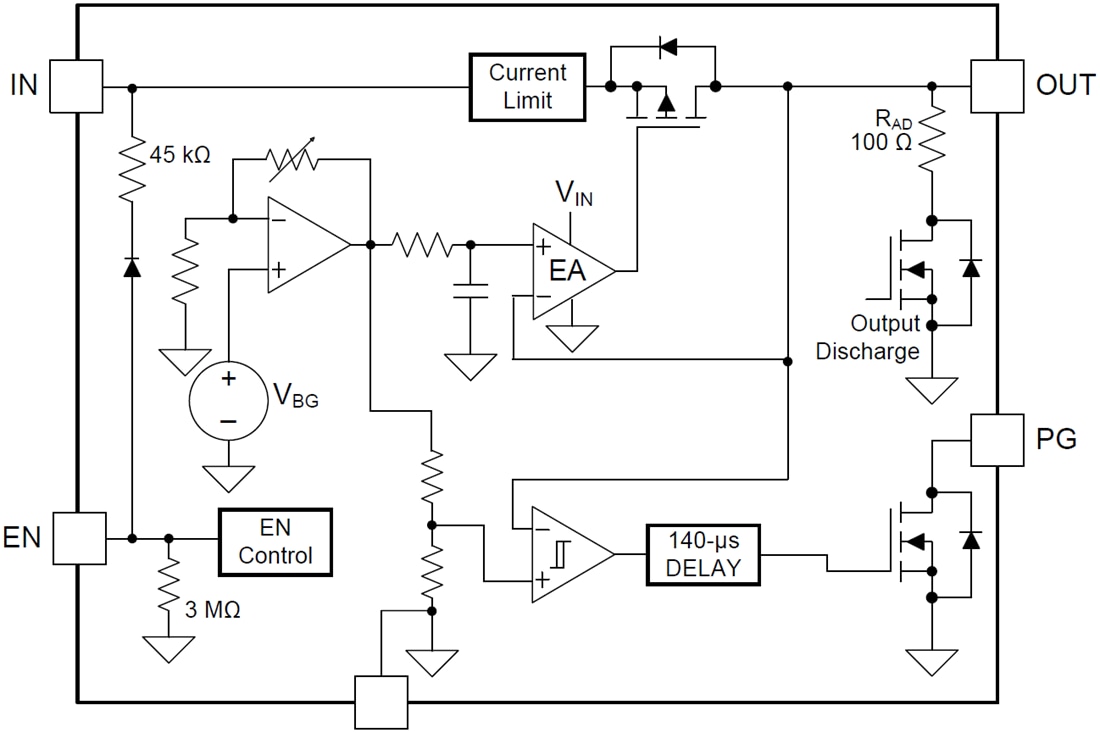

FUNCTIONAL BLOCK DIAGRAM
